Sommer Cable 200-0401 SC-Isopod SO-F22 Patch Cable - Black

Sommer Cable - SC-ISOPOD SO-F22 Patch Cable is perfectly suited for wiring inside racks, mini XLR cabling and for audio and HiFi components

£0.77 £0.64

In Stock

Only 40 left

SKU

300-051

Sommer Cable 200-0401 SC-Isopod SO-F22 Patch Cable

Fast and easy to work with
Durability due to the robust plastic jacket we developed specially
Easy to install due to the “memory“ effect
100 % Shielded
10 colours available

Applications

Mini XLR Connectors
Inside wiring of racks, audio and HiFi-components

Included in the Box

Sommer Cable Isopod - Sold by the Meter

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Sommer Cable 200-0401 SC-Isopod SO-F22 Patch Cable

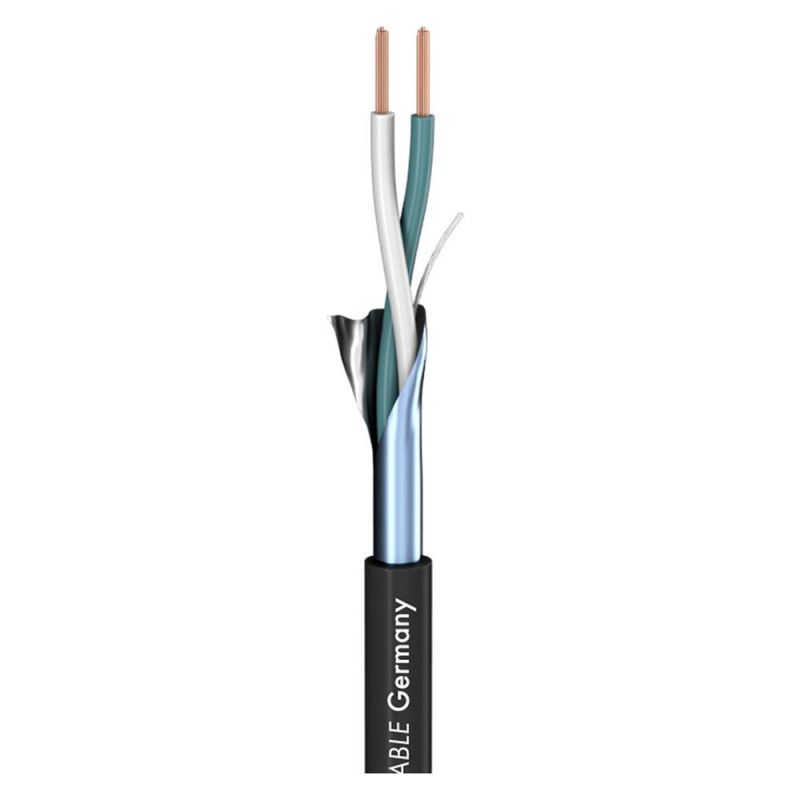

The SC-Isopod SO-F is a 2-wire foil-shielded cable with a compact outer diameter of either 3.3 mm. The cable is ideal for use with location recorders using mini XLR connectors and is mostly used for inside wiring of audio and HiFi-components. It has a “memory“ effect and can be installed “around corners“ without any problems.

The copper strands of the respective wire pairs are pre-twisted and can be stripped very easily. For easy connection the cable has an additional pre-twisted and tin-plated drain wire. It is shielded with AL/PT-foil, which automatically adheres to the jacket during stripping.

More Information

More Information
Delivery Time	In Stock
Price	£0.64
Brand	Sommer Cable
Manufacturer Code	200-0401
Jacket Diameter	3.3 mm PVC
Conductors	2 x 0.22 mm
Copper Strand No	7 x 0.20 mm per conductor
Insulation	PE 1.12 mm
Shielding Factor	100 %25
Working Temperature	min -25 degree C - max 70 degree C
Fire Load	0.05 kWh
Conductor Resistance	140 Ohm per km
Shield Resistance	75 Ohm per km
Insulation Resistance	200 MOhm per km
Capacitance Cond / Cond	74 pF per Metre
Capacitance Cond / Shield	143 pF per Metre
Strapline	Sommer Cable - SC-ISOPOD SO-F22 Patch Cable is perfectly suited for wiring inside racks, mini XLR cabling and for audio and HiFi components
