Sommer Cable 542-0051 DMX Binary 422 TP Black Cable

Sommer Cable 542-0051 DMX Binary 422 TP Black Cable

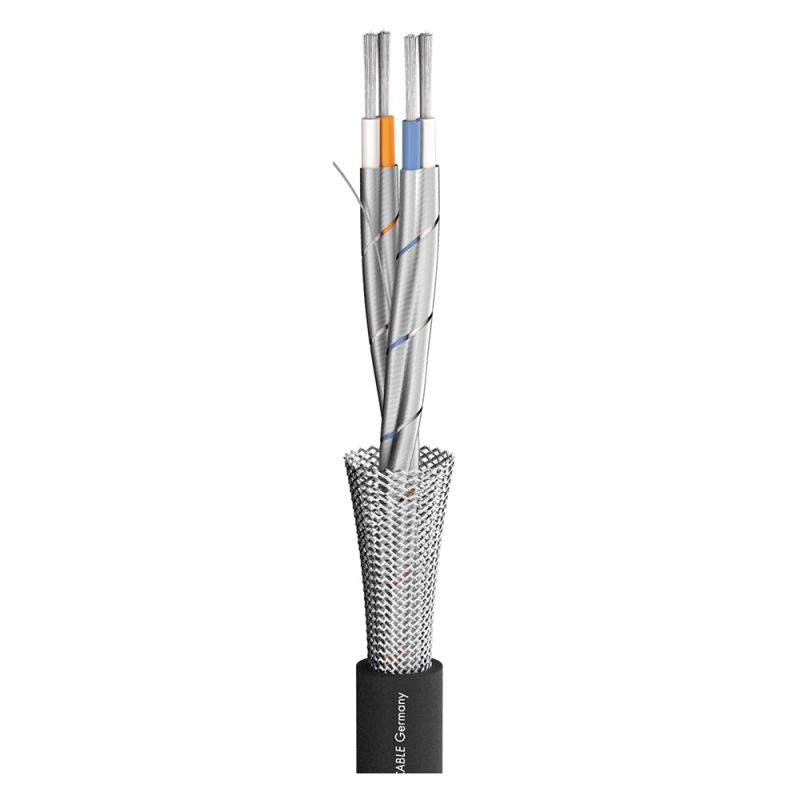

To minimize the diameter or to save space, AES/EBU or DMX cables are normally wired in crossover mode. In the worst case the wires can move a little under extremely tough use, which might result in a slightly wider tolerance range of the electrical data. To be on the safe side, one can now go for the somewhat more sophisticated version SC-BINARY 422 TP (Twisted Pair), where the two wire pairs are shielded individually and once again insulated from each other by an AL/PT foil. Of course, the cable will thereby grow a little in diameter which, however, will give the cable additional stability. The Binary 422 TP DMX512 (TWISTED PAIR) is delivered in a cold resistant and notch-proof S-PVC jacket. With its double shielding (AL/PT foil + Cu braid) and the wire coding it complies with the generally applicable regulations (VDE 0812/VDE 0207). Transfer speed 256 Kbs pursuant to EIA 485.
