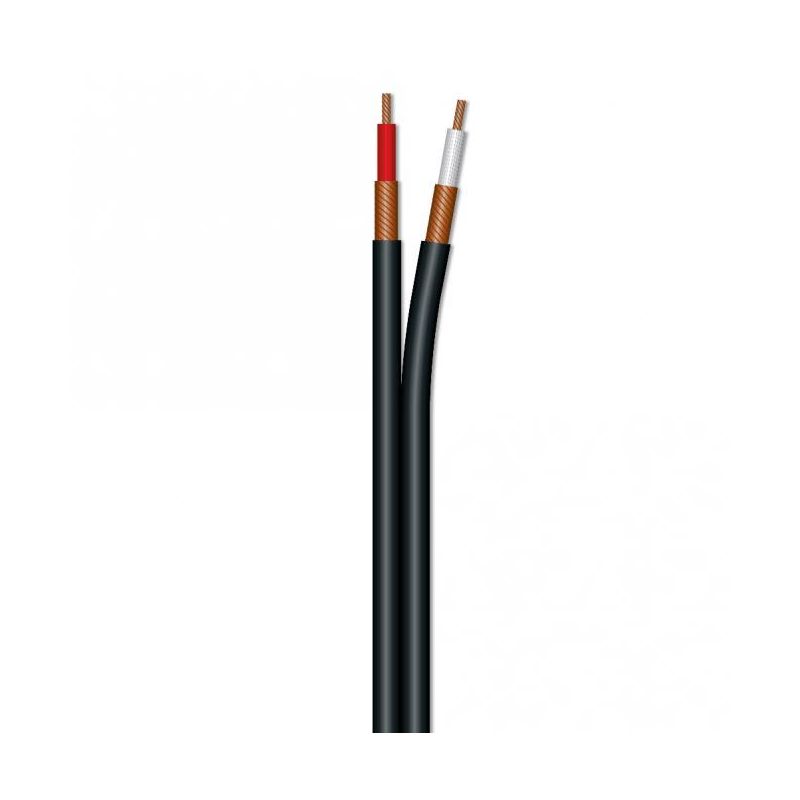

Sommer Cable 320-0061 SC-Onyx 2008 Patch & Instrument Cable - Black

Sommer Cable SC-Onyx 2008 Patch Cable is suitable for permanent installation and for Hi-Fi cables and adapter cables. Fits most Jack and Phono connectors

£1.00 £0.83
In Stock
Only 6 left
SKU
300-070

Sommer Cable 320-0061 SC-Onyx 2008 Patch & Instrument Cable

  • Very flexible due to the use of fine individual stranding
  • Every conductor is insulated and individually shielded with copper spiral shielding
  • Manual separation of the cable is easy
  • Small jacket diameter, ensuring easy handling with jack RCA and jack connectors
  • Black

Applications

  • Cabling for unbalanced units (keyboards)
  • Connection of HiFi-units
  • Construction of Y-adapter cables
  • Manufacture of insert cables

Included in the Box

  • Sommer Cable Onyx - Sold by the Meter

Sommer Cable 320-0061 SC-Onyx 2008 Patch & Instrument Cable

This twin cable similar in construction and quality to the TRICONE MKII, but a little thinner due to the twin-construction. It is suitable for the fabrication of HiFi-cables, adapters and for permanent installation. And it fits almost all jack and RCA connectors.

The SC-Onyx can be easily split at the center of the cable. Each wire has its own copper spiral shielding and is equipped with a thick jacket. The insulation is identified in either white and red, respectively white and yellow (SC-Onyx 2008).

The SC-Onyx 2008 is very small in diameter making it ideal for the manufacture of mini-jack plugs.



More Information
Delivery Time In Stock
Price £0.83
Brand Sommer Cable
Manufacturer Code 320-0061
Jacket Diameter 2.6 mm x 5.9 mm PVC
Conductors 2 x 1 x 0.08 mm
Copper Strand No 10 x 0.10 mm per conductor
Insulation PE
Shielding Factor 90 %25252525
Working Temperature min -20 degree C - max 70 degree C
Fire Load 0.2 kWh
Conductor Resistance 220 Ohm per km
Insulation Resistance %2525253E 200 MOhm per km
Capacitance Cond / Shield %2525253C 200 pF per Metre
Strapline Sommer Cable SC-Onyx 2008 Patch Cable is suitable for permanent installation and for Hi-Fi cables and adapter cables. Fits most Jack and Phono connectors
