Sommer Cable 200-0401F SC-Isopod SO-F22 Fire Retardent FRNC Patch Cable 100m Drum
Sommer Cable SC-Isopod SO-F22 FRNC Patch Cable is perfectly suited for wiring inside racks and for audio and Hi-Fi components - Fire Retardant version for use in Building Installations
£192.00
£160.00
Usually shipped in 7-10 days
SKU
300-060
Sommer Cable 200-0401F SC-Isopod SO-F22 Fire Retardent FRNC Patch Cable 100m Drum
- Fast and easy to work with
- Durability due to the robust plastic jacket we developed specially
- Easy to install due to the “memory“ effect
- 100 % Shielded
- Black
- FRNC for installation
Applications
- Inside wiring of racks, audio and HiFi-components
Included in the Box
- Sommer Cable Isopod FRNC - 100m Drum
Sommer Cable 200-0401F SC-Isopod SO-F22 Fire Retardent FRNC Patch Cable 100m Drum

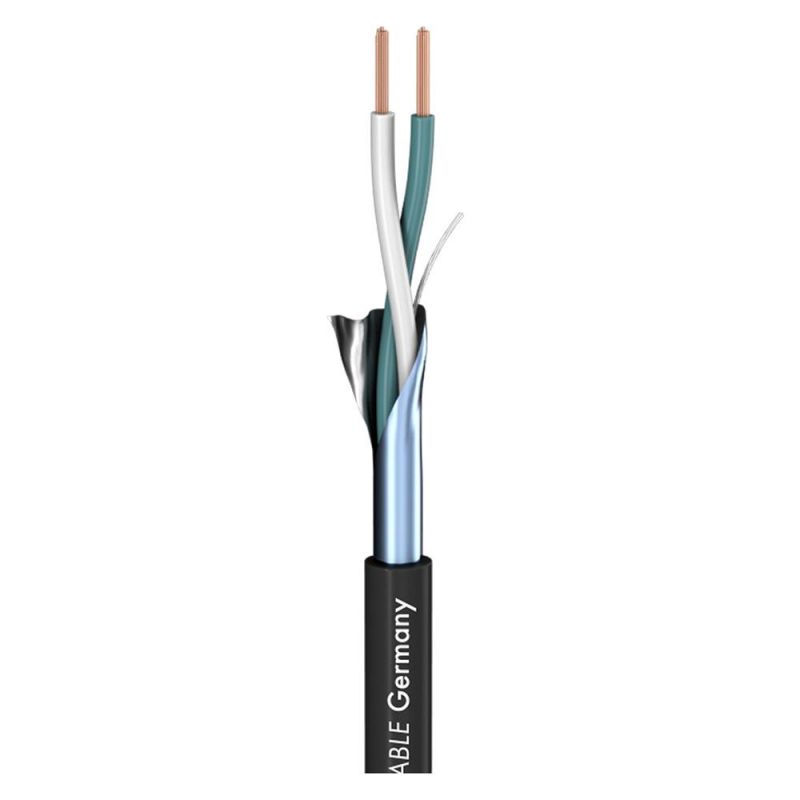

The SC-Isopod SO-F is a 2-wire foil-shielded cable with a compact outer diameter of either 3.3 mm (SO-F22) or 4.2 mm (SO-F50). The cable is mostly used for inside wiring of audio and HiFi-components. It has a “memory“ effect and can be installed “around corners“ without any problems.
The copper strands of the respective wire pairs are pre-twisted and can be stripped very easily. For easy connection the cable has an additional pre-twisted and tin-plated drain wire. It is shielded with AL/PT-foil, which automatically adheres to the jacket during stripping.
| Delivery Time | Usually shipped in 7-10 days |
|---|---|
| Price | £160.00 |
| Brand | Sommer Cable |
| Manufacturer Code | 200-0401F |
| Jacket Diameter | 3.3 mm FRNC |
| Conductors | 2 x 0.22 mm |
| Copper Strand No | 7 x 0.20 mm per conductor |
| Insulation | PE 1.12 mm |
| Shielding Factor | 100 percent |
| Working Temperature | min -25 degree C - max 70 degree C |
| Fire Load | 0.05 kWh |
| Conductor Resistance | 140 Ohm per km |
| Shield Resistance | 75 Ohm per km |
| Insulation Resistance | 200 MOhm per km |
| Capacitance Cond / Cond | 74 pF per Metre |
| Capacitance Cond / Shield | 143 pF per Metre |
| Strapline | Sommer Cable SC-Isopod SO-F22 FRNC Patch Cable is perfectly suited for wiring inside racks and for audio and Hi-Fi components - Fire Retardant version for use in Building Installations |
