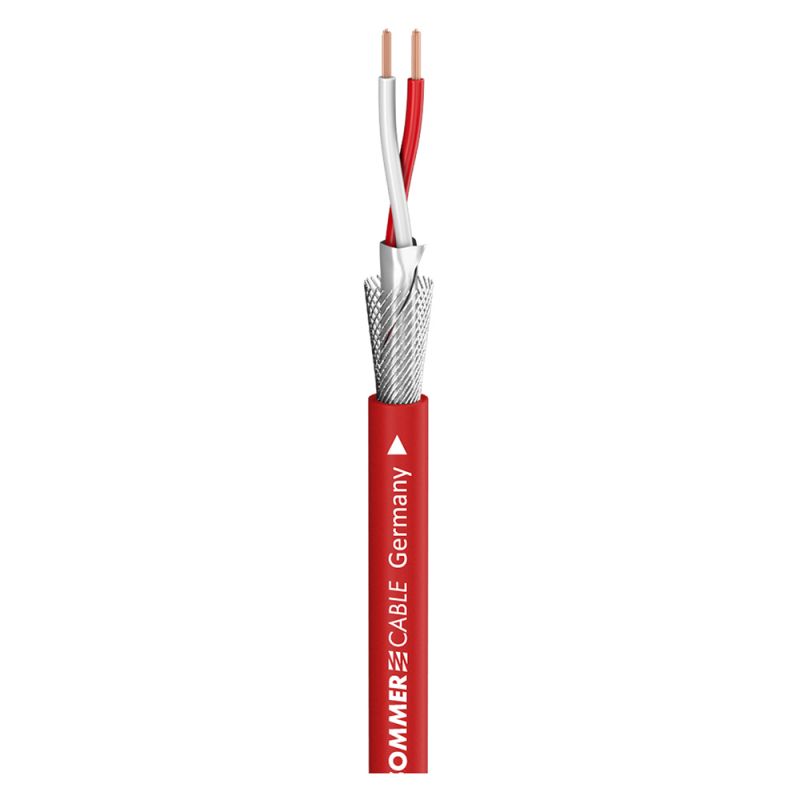

Sommer Cable 200-0353 SC-Goblin Patch & Microphone Cable - Red
The Sommer Cable SC-Goblin Patch & Microphone Cable in Red is perfectly suited for connectors with a small diameter and ideal for installation in racks, Y cables and for phono or jack plugs - Sold by the Meter
£0.91
£0.76
In Stock
Only 55 left
SKU
300-043
Sommer Cable 200-0353 SC-Goblin Patch & Microphone Cable
- Ideal for patch cables due to the small outer diameter of 4.6mm (0.181 in).
- Very good tensile strength due to the double shielding construction and the special PVC-jacket
- Linear sound transmission due to the special conductor pair construction and the copper stranding
- 100 % Shielded due to the use of metalic fleece and additional copper spiral shielding
Applications
- Professional studio patch connection
- High quality mini-microphone cable
- Demanding phone and RCA-connections
- MIDI-cable for long distances
- Inside wiring for racks and connection of audio components and effect units
- 5 colours available
Included in the Box
- Sommer Cable SC-Goblin Red - Sold by the Meter
Sommer Cable 200-0353 SC-Goblin Patch & Microphone Cable
Due to the small diameter the SC-Goblin fits almost all current TT-phone and B-gauge plug connectors and can also be used for a Y-adapter cable.
Based on the carefully constructed shielding the cable also has the additional positive benefit of enormous treadability and tensile strength.
Offering 100% shielding makes this cable the perfect solution for many rack installation jobs. Available in 5 colours for easy identification
The white version is suitable for inconspicuous installation in churches.
| Delivery Time | In Stock |
|---|---|
| Price | £0.76 |
| Brand | Sommer Cable |
| Manufacturer Code | 200-0353 |
| Jacket Diameter | 4.6 mm PVC |
| Conductors | 2 x 0.14 mm |
| Copper Strand No | 18 x 0.10 mm per conductor |
| Insulation | PE 1.05 mm |
| Shielding Factor | 100 %2525 |
| Working Temperature | min -25 degree C - max 70 degree C |
| Fire Load | 0.10 kWh |
| Conductor Resistance | 140 Ohm per km |
| Shield Resistance | 30 Ohm per km |
| Insulation Resistance | 200 MOhm per km |
| Capacitance Cond / Cond | 65 pF per Metre |
| Capacitance Cond / Shield | 120 pF per Metre |
| Strapline | The Sommer Cable SC-Goblin Patch & Microphone Cable in Red is perfectly suited for connectors with a small diameter and ideal for installation in racks, Y cables and for phono or jack plugs - Sold by the Meter |
