Kino Flo Freestyle Air Max LED DMX Kit, Univ w/Soft Case - KIT-FAMAX

The Kino Flo FreeStyle Air Max is a lightweight LED panel with a slim design. It includes wireless DMX with Lumen Radio® and has a built-in harness and a twist-on mounting plate to accept a twist-on mount. The four moulded corners offer additional rigging points for rope hanging. With the KinoGrip mount, the fixture can be hand-held or stand mounted. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets.

£5,246.21 £4,371.84

Usually shipped in 2-3 days

SKU

510-762

Kino Flo Freestyle Air Max LED DMX Kit, Univ w/Soft Case - KIT-FAMAX

Light levels do not change when selecting Kelvin settings
No color shift while dimming
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
Flicker-free, quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio®)
DMX Auto Terminate
The firmware is updatable from a PC using the Mini B USB data port
Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
Kelvin presets and Dial-in colour temperature control between 2500K-9900K
Green/Magenta Control and Hue angle and Saturation adjustments
Kino Flo presets and Gels, RGB control, CIE xy and FX Control
Camera Profiles LUTs
Color Space
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings

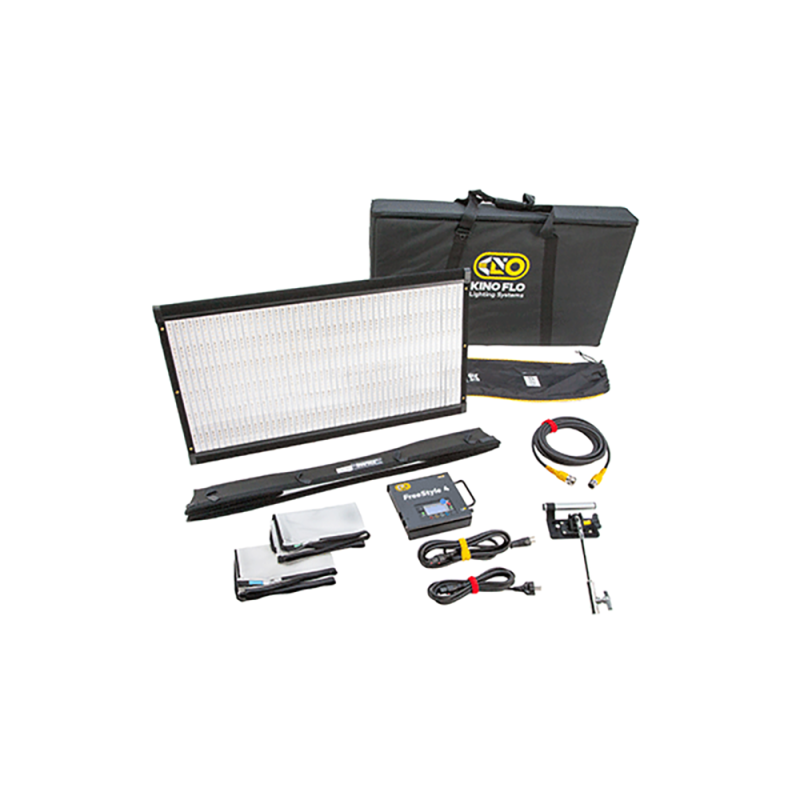

Included in the Box

1 x Freestyle Air Max LED Panel - PAN-AMAX
1 x Freestyle Air Snapbox w/2 x Diffusion - DFS-FAMX
1 x Freestyle 140 LED DMX Controller Univ 230U - LED-140X-230U
1 x KinoGrip 41K Mount w/Baby Receiver Short (16mm) MTP-BG41S
1 x Freestyle/4 Extension Cable 25ft - X12-F425
1 x Freestyle Air Mini Soft Case - BAG-FAMX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Kino Flo Freestyle Air Max LED DMX Kit, Univ w/Soft Case - KIT-FAMAX

The FreeStyle Air Max is a lightweight LED panel that integrates seamlessly with existing FreeStyle systems. Compatible with FreeStyle mounts, extension cables and LED-140 & LED-150 Series controllers, this portable thin profile panel offers the advantages of easy deployment and favorable cost of ownership to new current FreeStyle owners and operators.

In addition to a twist-on mount for light stands, and corner bumpers for 4-point hangs, the FreeStyle Air comes with eyelets to simplify overhead and other surface attachment. Its rigid construction prevents any flex when handling and safeguards the integrity of its components. Usable LED life is extended with a proven passively-cooled design that ensures color and luminosity remain stable over the rated life of the LEDs.

Ease of maintenance is built into a user serviceable design. It features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired.

Combining new mobility and reliable performance with familiar features, the FreeStyle Air delivers Kino Flo’s renowned Color Science LED technology in this lightweight addition to the range.

More Information

More Information
Delivery Time	Usually shipped in 2-3 days
Price	£4,371.84
Brand	Kino Flo
Manufacturer Code	KIT-FAMAX
Type Of Lamphead	LED Panel
Number Of Heads	1
Size	Freestyle Air Max Panel Size: 39.5 x 2 x 22” (100 x 5 x 56cm), Weight: 7.5 lbs / 3kg
Dimming	100% - 0
Mounting	Stand, Handheld or Fixed to Wall / Ceiling
Power Source	Kino Flo LED-140 & LED-150 Series controllers
Supply Voltage	Universal Input 100-240V AC or 24V DC (Input range 18-36V DC)
Packed Size	Kit Bag Size 42 x 7.5 x 24” (107 x 19 x 61cm), Weight 30.5 lb (14kg)
Strapline	The Kino Flo FreeStyle Air Max is a lightweight LED panel with a slim design. It includes wireless DMX with Lumen Radio® and has a built-in harness and a twist-on mounting plate to accept a twist-on mount. The four moulded corners offer additional rigging points for rope hanging. With the KinoGrip mount, the fixture can be hand-held or stand mounted. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets.
