Kino Flo KIT-DL20XU Diva-Lite 20 LED DMX Kit
The Kino Flo Diva-Lite LED 20 DMX Kit - KIT-DL20XU is the fantastic new Diva-Lite with both dial in white colour and the new colour menu for special effects like candle flame, sodium vapor etc.
Kino Flo KIT-DL20XU Diva-Lite LED 20 DMX Kit
- Dial-in colour temperature control between 2500K-9900K
- Kelvin presets
- Green/Magenta Control
- Kino Flo Colour presets (such as Sodium Vapour, Blue and Green Screen etc.)
- Over 100 well-known lighting gels
- Vibrant Colour Selection (RGB WW Colour Gamut)
- Full colour control through Hue Angle and Saturation control
- Can use preset buttons to store custom Kelvin and colour settings
- Colour-correct with high colour rendering index (CRI 95)
- No colour shift while dimming
- Light levels do not change when selecting Kelvin settings
- Flicker-free, dead quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio)
- DMX Auto Terminate
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient, draws 0.65A, 230VAC and 7A, 24VDC (Diva-Lite LED 30)
- Fixture includes removable 90° Honeycomb Louver
- Built-in Barndoors
- Centre Mount
- Mounts to stand, light enough to be hand-held

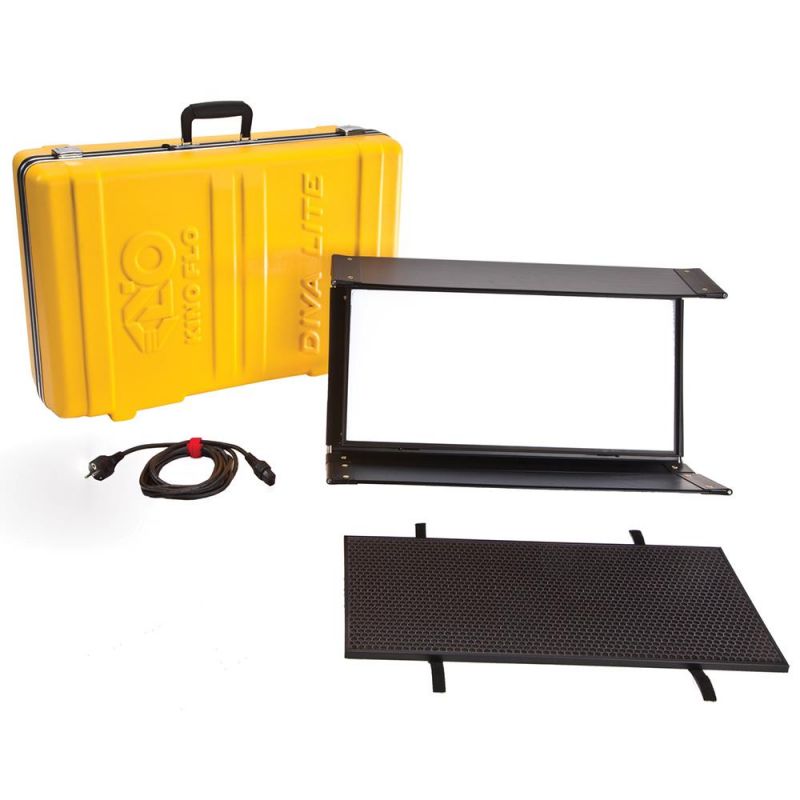

Included in the Box
- 1 x Diva-Lite LED 20 DMX Fixture
- 1 x Louver 90 degrees
- 1 x Baby Receiver (16mm)
- 1 x Travel Case
Kino Flo KIT-DL20XU Diva-Lite LED 20 DMX Kit
The fantastic new Diva-Lite LED from Kino Fo has two Menu options. Those who prefer to work with white light can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels.
Those who want additional features can switch over to the new "colour menu". In the colour menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo colors to match Candle Flame, Warm White, Cool White, Sodium Vapor, Mercury Vapor, 20K Blue Sky, Green Screen and Blue screen.
In addition, there is a range of gels that can be applied to any Kelvin setting. Simply scroll through the menu to choose up to 105 well-known lighting gels.
In the colour menu, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave similarly to a traditional colour wheel, where you have white light in the centre, the Hue angle determines the colour along a 360-degree range and Saturation determines how much colour is applied. For example, if a user wants to review the choices, they can set Saturation to 100% and scroll through 360-degrees of colour to choose the desired hue and adjust the Saturation to their liking. Reducing the saturation to "0" will take the settings back to white light.
Kino Flo's new Diva-Lite LED also comes with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC.
Diva-Lite LED Advantages
The Diva-Lite LED DMX operates on universal AC power or battery power and needs only 1.3A at 120VAC or 7A at 24VDC
(Diva-Lite LED 30). The Diva-Lite LED’s cost savings from low energy and long LED life continues Kino Flo’s reputation as an environmentally friendly lighting company.
The Diva-Lite LED is comprised of a lightweight fixture design with built-in barndoors and a removable 90° honeycomb louver. The centre mount with baby receiver lollipop can mount directly onto a baby stand or hang from a grid with a baby pipe clamp. The Diva-Lite LED features onboard state of the art electronics with presets and tunable Kelvin from 2700K to 6500K with extended Kelvin colour range from 2500K to 9900K. Light levels do not change when selecting Kelvin settings. In addition to Green/Magenta control, the Diva-Lite LED includes Kino Flo presets and Gels, Hue angle and Saturation adjustments. With built-in DMX and Lumen Radio® receivers, the Diva-Lite LED’s can be controlled by DMX and/or DMX wireless. With universal input at 100-240VAC, the Diva-Lite LED 30 uses only 1.3A at 120VAC or 7A at 24VDC. The unique all-in one features and portable design make the Diva-Lite LED a versatile tool in the studio or on location.
Long LED Life
LED’s are well known as being energy efficient, lasting for thousands of hours. While Kino Flo’s Diva-Lite LED also has a long LED life, the Diva-Lite LED’s unique design will maintain its colour-correct colour temperature.
True Match® Color-Correct
As with all Kino Flo products, the Diva-Lite LED has been specially formulated to match the spectral distribution curves of today’s HD film and video equipment. The Diva-Lite LED has a high colour rendering index of CRI 95. Even while dimming, the fixture is flicker-free and without colour shift.
Heat Management Design
For Kino Flo, heat management is a critical design element of fixture design. The physical heat or buildup heat within the LED fixture will directly influence the color temperature, lumen performance and life of an LED.
The Diva-Lite LED’s unique design operates coolly, consumes very low energy (1.3A, 120VAC) and is properly ventilated to maintain a stable colour temperature.
A well maintained temperature extends the lumen maintenance, colour temperature and life of an LED.
Cost savings cover a broad range of concerns:
Lower energy costs
Less heat so lower air conditioning expenses
Energy Savings Calculations
With the push for reducing fossil fuel consumption, TV studios are looking at cooler more efficient lighting systems to reduce the costs and save energy. Part of this process involves generating energy values to determine savings. One of the most important values is Btu/kWh.
British Thermal Units per Kilowatt Hour
Any light generates a percentage of usable light and the rest in heat. For example, a standard incandescent light bulb converts only 11 percent of its electrical input into visible light, while the rest is dissipated directly as heat. There are energy costs involved in cooling the studio environment. The measure of Btu/kWh is a means of calculating the thermal loads related to operating lighting.
Use the following information to calculate Btu/kWh Watts to Btu:
1 kWh = 3413 Btu/Hr
1 Watt = 3.413 Btu/Hr
3.413 Btu per Watt-hour
|Delivery Time||Usually shipped in 2-3 days|
|Type Of Lamphead||LED|
|Number Of Heads||1|
|Size||61 x 35.5 x 12.7 cm, 24 x 14 x 5 inches|
|Mounting||360 degree mounting from centre Mount|
|Power Source||Universal Input 100VAC-240VAC or 24VDC|
|Packed Size||Size Including Case 76 x 27 x 53 cm (30 x 10.5 x 21 inches)|
|Strapline||The Kino Flo Diva-Lite LED 20 DMX Kit - KIT-DL20XU is the fantastic new Diva-Lite with both dial in white colour and the new colour menu for special effects like candle flame, sodium vapor etc.|
