Sommer Cable 200-0301 SC-Square 4-core Starquad MKII Highflex Microphone Cable
Sommer Cable SC-Square 4-Core Starquad MKII Highflex microphone cable is a top quality microphone cable, can be used in Starquad configuration for maximum signal quality and interference rejection
Sommer Cable 200-0301 SC-Square 4-Core Starquad MKII Highflex Microphone Cable
- Extremely noise-free due to the crossover connection of 4 individual wires
- Suitable as a phantom power supply and stereo cable due to the use of 2 additional conductor wires
- Very good transmission safety and linear sound transmission
- Extremely robust and good tensile strength due to the thick PVC-jacket
- 100 % Shielding due to dense copper spiral shielding and additional fleece foil
- Black colour
Applications
- Professional studio and microphone technology
- Connection of effect and control units needing a return signal
- Professional MIDI-technology transmission cable
- High end connection of HiFi-units
Included in the Box
- Sommer Cable Square - Sold by the Meter
Sommer Cable 200-0301 SC-Square 4-Core Starquad MKII Highflex Microphone Cable

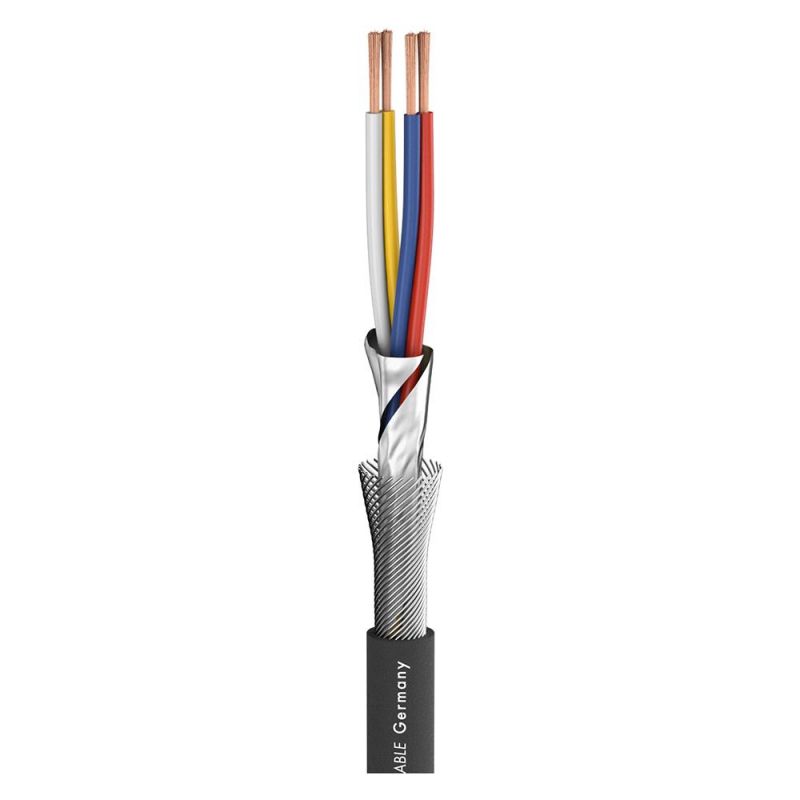

The SC-Square is a top microphone cable with great performance. Two wires are paired for optimum sound. This improves the capacitive values. In studios the cable is especially used to provide phantom power or for noise suppression (here the connection should be crossed over, opposite wires RED/WHITE and BLUE/YELLOW are paired). Dense spiral shielding and an additional metalic fleece foil guarantee superior protection. Because of the complicated, precise construction this cable can often be found in highly demanding HiFi-studios. A highly valued cable because of its homogenous linear sound image.
If you do not want to compromise on sound and “electrics“ in the studio, then this is your cable!
| Delivery Time | In Stock |
|---|---|
| Price | £1.16 |
| Brand | Sommer Cable |
| Manufacturer Code | 200-0301 |
| Jacket Diameter | 6.5 mm PVC |
| Conductors | 4 x 0,20 mm |
| Copper Strand No | 102 x 0.05 mm per conductor |
| Insulation | PE |
| Shielding Factor | 100 %25252525 |
| Working Temperature | min -25 degree C - max 70 degree C |
| Fire Load | 0.22 kWh |
| Conductor Resistance | %2525253C 98 Ohm per km |
| Shield Resistance | %2525253C20 Ohm per km |
| Insulation Resistance | %2525253E 200 MOhm per km |
| Capacitance Cond / Cond | 65 pF per Metre |
| Capacitance Cond / Shield | 120 pF per Metre |
| Strapline | Sommer Cable SC-Square 4-Core Starquad MKII Highflex microphone cable is a top quality microphone cable, can be used in Starquad configuration for maximum signal quality and interference rejection |
