Sommer Cable 200-0101F SC-Source MKII Highflex FRNC Microphone Cable

Sommer Cable SC-Source MKII Highflex FRNC is the best selling professional cable that meets fire protection guidelines

£2.05 £1.71
In Stock
SKU
300-024

Sommer Cable 200-0101F SC-Source MKII Highflex FRNC Microphone Cable

  • Neutral and loss free audio transmission due to the special copper strand construction
  • 100% Shielding due to dense copper spiral shielding and an additional AL-fleece/AL-foil
  • Professional technology at a low price
  • Also available in a PUR-version, resistant to notching and cold temperatures
  • Black Colour

Applications

  • Professional studio and microphone technology
  • Outdoor Transmission / OB Van
  • Tough stage applications



Included in the Box

  • Sommer Cable Source MKII FRNC - Sold by the Meter

Sommer Cable 200-0101F SC-Source MKII Highflex FRNC Microphone Cable

The professionals microphone cable affordble but without compromise. The SC-Source MKII cable was originally developed for the manufacturers of professional studio microphones, e.g. Schoeps. Their demands for top quality helped us to create a professional and yet affordable studio microphone cable.

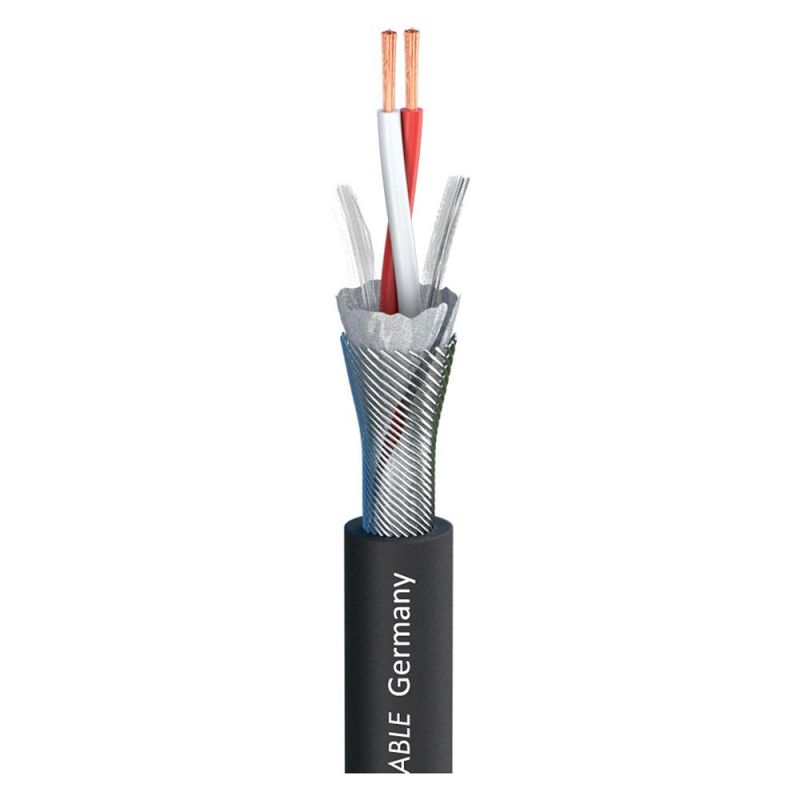

SC-Source is 100% shielded through the use of dense copper spiral shielding and a robust braided fleece around the wire pairs (FRNC-version with AL-foil). The fleece is vaporized on both sides with a conductive aluminum layer. This guarantees endurance of 100% shielding even with strong wear. This cable should be used wherever electrical sources could interfere with audio and data transmission. Excellent values, comparable cables can cost almost twice this price with no quality gains.

For extreme cold condition use please see the PUR Jacket type (product code 300-025)

For standard condition use please see PVC Jacket type (product code 300-021)

More Information
Delivery Time In Stock
Price £1.71
Brand Sommer Cable
Manufacturer Code 200-0101F
Jacket Diameter 6.5 mm
Conductors 2 x 0,22 mm
Copper Strand No 32 x 0,10 mm per conductor
Insulation FRNC
Shielding Factor 100 %252525
Working Temperature min -25 degree C - max 70 degree C
Fire Load 0.21 kWh
Conductor Resistance %25253C 78 Ohm per km
Shield Resistance %25253C25 Ohm per km
Insulation Resistance %25253E 200 MOhm per km
Capacitance Cond / Cond 60 pF per Metre
Capacitance Cond / Shield 110 pF per Metre
Strapline Sommer Cable SC-Source MKII Highflex FRNC is the best selling professional cable that meets fire protection guidelines
