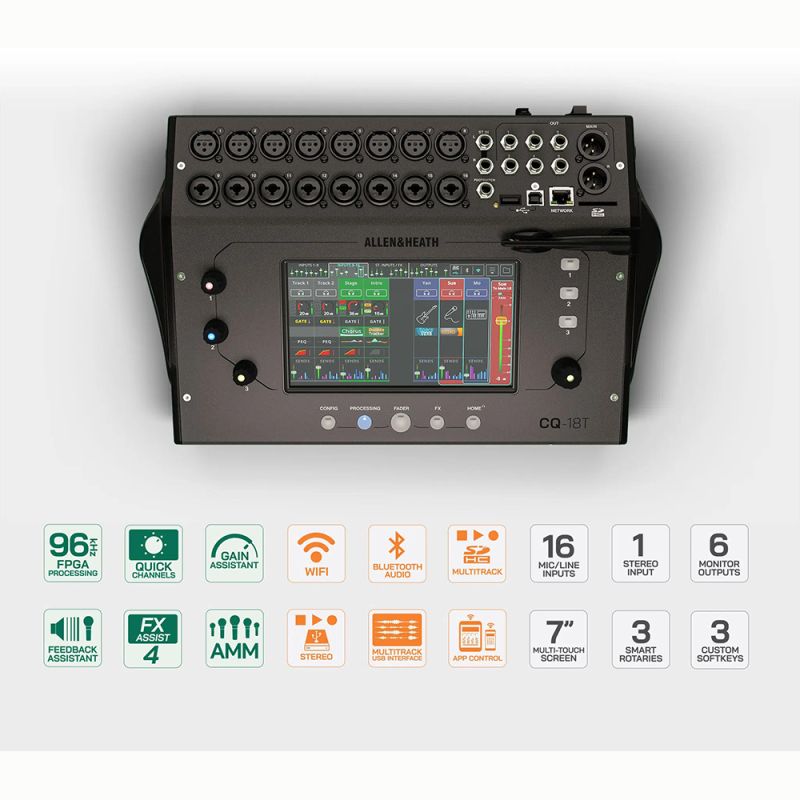

Allen & Heath CQ18T Small Format Digital Mixing Console with Touchscreen

Allen & Heath CQ18T Small Format Digital Mixing Console with Touchscreen

CQ-18T is the largest desktop mixer in the A&H CQ range and is ideal for gigging bands, rehearsal spaces, home recording and streaming, speech applications and corporate AV.

Mix Smarter. Work Faster. Sound Better.

CQ takes A&H's renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.

Pristine Sound

CQ draws on technology from Allen & Heath's latest generation of live sound consoles to deliver audio quality previously unimaginable at this level of mixer.

Pristine 96kHz audio is partnered with studio-grade onboard processing and an optimised suite of FX to set a new standard for what’s possible with ultra-compact digital mixers.

Pick Your Mixing Style

Every input channel on CQ can be switched between two modes.

Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.

Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.

Faster Setups

Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.

CQ’s Gain Assistant quickly and accurately sets the optimal gain level for one or multiple input channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.

Recording & Playback

CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.

An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.

You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.

The CQ-18T also includes a pair of headphone outputs which can be fed separate mixes, perfect for a portable production setup.

Say Goodbye to Feedback

CQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.

Built-In FX

CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.

Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.

You’re Always In Control

CQ-18T gives you all the tactile control you need to get around the interface quickly.

A 7″ touchscreen and rotary control make it simple to set up and get mixing, and the 3 Custom Rotaries and SoftKeys allow you to access commonly used functions with just your muscle memory.

The free CQ MixPad app also gives you full control of your mix from anywhere in the venue thanks to the built-in WiFi.

Tech Specs:

• Inputs - 8 XLR, 8 XLR/TRS Combi, 2 TRS (stereo)
• Outputs - 2 XLR (Main), 6 TRS (Monitors)
• 24×22 USB-B interface (48/96kHz)
• SD record/playback 24×22 (48kHz), 16×16 (96kHz)
• Stereo USB record/playback with dedicated input channel
• Stereo Bluetooth playback with dedicated input channel
• 4 FX engines
• 3 Custom Rotaries
• 3 Custom SoftKeys
• Dual Footswitch connection
• 7” Capacitive touchscreen with associated rotary control
• 2 Assignable TRS headphone outputs
• Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
