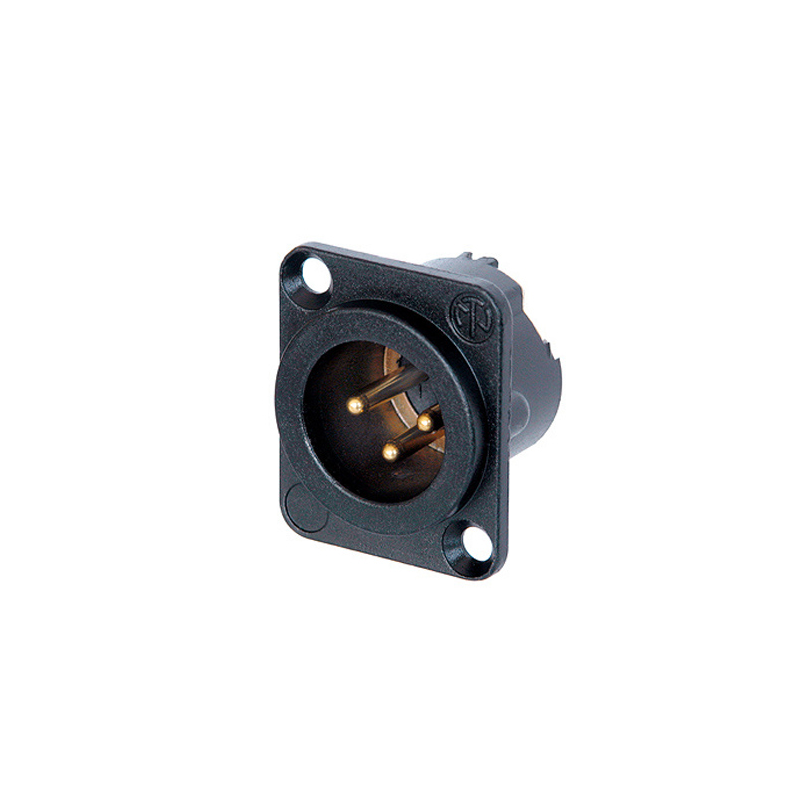

Neutrik NC3MD-LX-B - XLR Male Chassis Connector - Black Finish with Gold Contacts
The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
£3.58
£2.98
In Stock
SKU
200-806
Neutrik NC3MD-LX-B - XLR Male Chassis Connector
- 3 pole male chassis mount receptacle
- Solder cups
- Black metal housing
- Gold contacts
Included in the Box
- 1 x Neutrik NC3MD-LX-B - XLR Male Chassis Connector - Black Finish with Gold Contacts
Neutrik NC3MD-LX-B - XLR Male Chassis Connector
Neutrik's DLX series - the next generation of the popular DL XLR chassis connectors - provides unequalled performance through quality design. The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector. Reliability, robustness and dependability derive from incorporating latest components from the well proven and reliable XX and A series connectors.
- Termination - Solder cups, now larger contacts for easier termination
- Locking mechanism - Latch lock
- Grounding - Separate duplex ground contact to mating connector shell and front panel with the option of solder connection to pin1 to chassis ground.
- Suitable for both front and rear panel mount
- Panel fastening - Standard: Countersunk mounting holes to accept M3 bolts or rivets
- Panel thickness 1 - 3mm
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Delivery Time | In Stock |
---|---|
Price | £2.98 |
Brand | Neutrik |
Manufacturer Code | NC3MD-LX-B |
Strapline | The new DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. |
