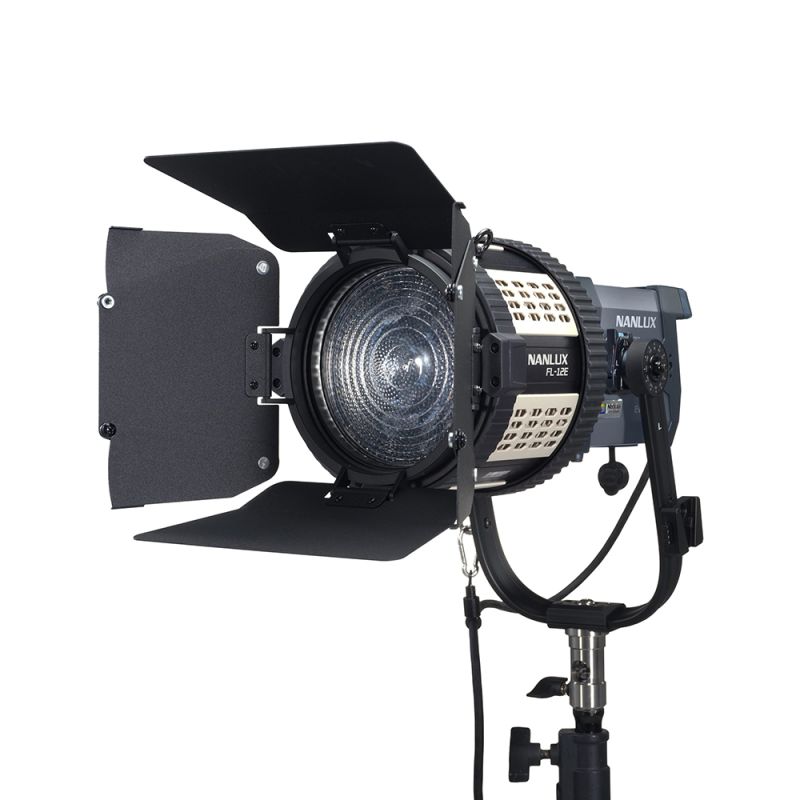

Nanlux FL-12E Motorised Fresnel Lens for Evoke 150C
The Nanlux FL-12E Fresnel Lens features a 15° – 35° zoom range which can be adjusted manually or motorised through the light fixture via on board controls or wired / wireless / Ethernet DMX or via App control. The FL-12E is IP66 rated for use in all weather conditions and is designed to fit all Nanlux FE and FM Mount lighting fixtures
Nanlux FL-12E Motorised Fresnel Lens for Evoke 150C
- 15° – 35° zoom range
- Both Manual and Motorised adjustment through the fixture via wired / wireless / Ethernet DMX
- High brightness with focused and soft lighting area
- Natural beam edge transitions
- IP66 rating
Included in the Box
- 1 x Nanlux FL-12E Motorised Fresnel Lens for Evoke 150C
- 1 x Nanlux Barndoor
- 1 x Carrying Bag
- 1 x User Manual
Nanlux FL-12E Motorised Fresnel Lens for Evoke 150C
Designed with an FE mount, the FL-12E Motorized Fresnel Lens is compatible with Nanlux’s FE mount and FM mount fixtures. It features a 15°–35° zoom range. When paired with an FE mount fixture, the zoom can be adjusted via various motorized control methods, allowing for convenient and efficient light shaping.
The FL-12E supports both motorized and manual control, allowing the beam angle to be adjusted between 15° and 35°. When mounted on an FE mount fixture, it supports motorized control: it can be operated directly using the buttons on the lens or the fixture’s control panel, or controlled through the fixture using various methods (including wired controllers, apps, DMX, CRMX, or Ethernet).
Featuring an excellent optical design, it delivers high brightness while providing a focused and soft lighting area with natural beam edge transitions.
The FL-12E features an IP66 rating, allowing it to operate normally in rain, snow, and dusty environments without the need for additional protection.
Specifications
Compatible Product: FE mount fixtures, FM mount fixtures
Beam Angle: 15°-35°
IP Rating: IP66
Product Size: FL-12E: 151×178×184mm/5.94×7.01×7.24″ / Barndoor: 192×174×34mm/7.56×6.85×1.34″ / Carrying Bag: 195×195×300mm/7.68×7.68×11.81″
Product Weight: FL-12E: 1.01kg/2.23lb / Barndoor: 0.39kg/0.86lb / Carrying Bag: 0.19kg/0.42lb
| Barcode | 6949987492764 |
|---|---|
| Delivery Time | In Stock |
| Price | £189.00 |
| Brand | Nanlux |
| Manufacturer Code | FL-12E |
| Strapline | The Nanlux FL-12E Fresnel Lens features a 15° – 35° zoom range which can be adjusted manually or motorised through the light fixture via on board controls or wired / wireless / Ethernet DMX or via App control. The FL-12E is IP66 rated for use in all weather conditions and is designed to fit all Nanlux FE and FM Mount lighting fixtures |
