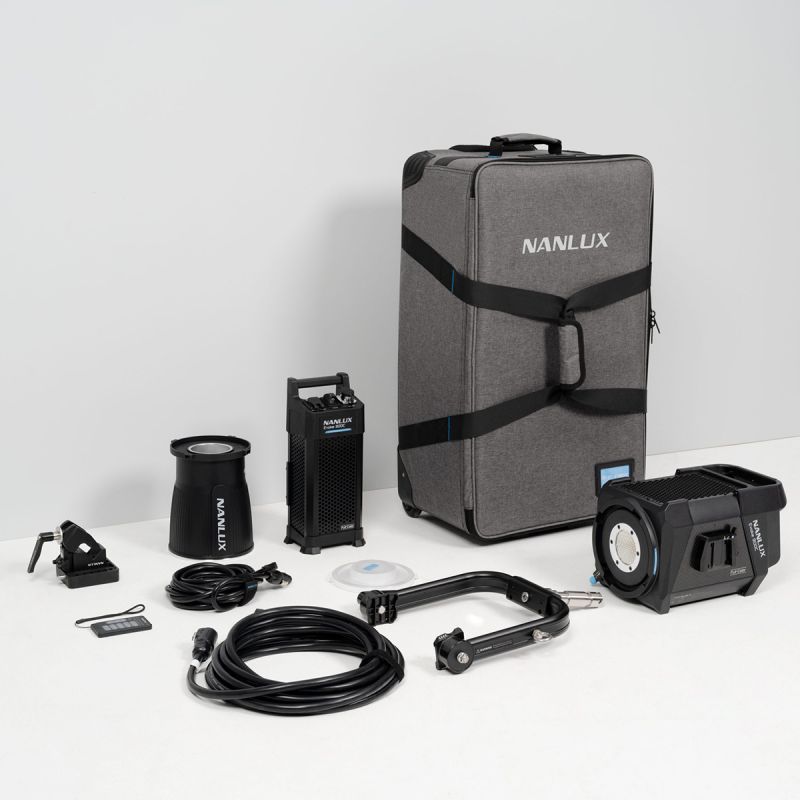

Nanlux Evoke 900C RGBLAC LED Spot Light ST-KIT

Nanlux Evoke 900C RGBLAC LED Spot Light ST-KIT

The Nanlux 900C is a full color and powerful point source light, equipped with RGBLAC color mixing system and Art-Net/sACN controls the Nanlux Evoke 900C is capable of delivering beautiful realistic lighting while fitting perfectly into vitual production workflows.

Extraordinary Full-Color LED Spotlight

940W Rated Power / 12940 lux at 3M (with 45 Reflector / 5600K

As a point source LED, a quick switch between soft and hard light can be easily achieved on the Evoke 900C via attaching different modifiers. Flooding, spotting and cutting are also a sure thing in order to provide more light shaping freedom for image making.

Blending Six Colors

The Evoke 900C is adopted with the state-of-the-art RGBLAC six color mixing system -- adding Lime, Amber and Cyan on base of the primary colors RGB, reaching a new altitude in color accuracy.

The RGBLAC color mixing technology on the Evoke 900C enables more color options, and the ultra-wide CCT range also renders the accurate sunlight or moonlight while maintaining excellent light quality all the time.

Art-Net/sACN

The Evoke 900C is equipped with 5-pin XLR in&out ports and LAN in&out ports, supporting basic DMX/RDM control and Ethernet control based on Art-Net/sACN protocol. Through the LAN ports’Art-Net/sACN control, the Evoke 900C could not only easily achieve a much longer distance of signal transmission than traditional cable plus a more convenient control across multiple universes, without affected by signal decay, but also embed seamlessly into Unreal Engine’s lighting system with the matching DMX mode, allowing the Evoke 900C to respond correctly to changes in the virtual environment in real time.

DMX/RDM

The fixture comes with DMX 5-pin port, supporting DMX/RDM control and guaranteeing stable operation for large scenes.

LumenRadio CRMX

Through the built-in LumenRadio TimoTwo module, Evoke 900C can receive or transmit CRMX signal, and have the ability to co-operate with other lighting fixtures.

Nanlink APP

Access the NANLINK wireless control system through the built-in 2.4G/Bluetooth modules to achieve a precise and professional lighting control experience with ease.

More Lighting Modes

The Evoke 900C incorporates more versatile lighting modes -- CCT mode with G/M adjustment, Advanced HSI mode, RGBW mode, XY coordinates and GEL mode. And a DMX mode is developed specifically for virtual production under DMX control. The wide and complete selection of lighting modes gives users the key to adjust colors at will.

Advanced HSI Mode:

Based on the original HSI mode and expand a higher level of customization, support free adjustment of the Intensity, Hue, Saturation and White Point Color Temperature.

RGBW Mode:

R/G/B/W channels can be controlled separately for more accurate color. *More than 1.84e+19 colors are accessible via DMX console.

XY Coordinates:

Precise color control through adjusting on the XY coordinates in the selected color gamut of CIE1931 color space.

Gel Mode:

Based on traditional gels, the gel mode provides a wide selection of 151 gels, saving times on the gels’installation process, and bringing a more convenient way in presenting the color and mood. *Available to control on the NANLINK APP in the future

Effect Modes:

The Evoke 900C has 15 built-in effects to simulate the real lighting effects with all parameters adjustable via On-board, NANLINK APP, DMX and other control methods.
