Kino Flo KIT-F31U FreeStyle 31 LED DMX Kit with Flight Case

The Kino Flo KIT-F31U FreeStyle 31 LED DMX Kit w/ Flight Case is ideal for use on set as a white light, for creating colour effects or for dialling in whichever Gel colour you require.

£5,513.40 £4,594.50
Usually shipped in 2-3 days

Kino Flo KIT-F31U FreeStyle 31 LED DMX Kit w/ Flight Case

  • Kelvin presets
  • Dial-in colour temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • FX Control
  • Works with Apps with predetermined RGB presets or colour wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No colour shift while dimming
  • Colour-correct with high colour rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • Remote fixture with built-in barndoors
  • Removable LED panel with center mount and molded corner mounts
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Removable Centre Mount
  • KinoGrip Centre Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held
  • Controller mounts onto fixture or operates remotely with extension cable
  • Updatable Firmware via the Kino Flo website

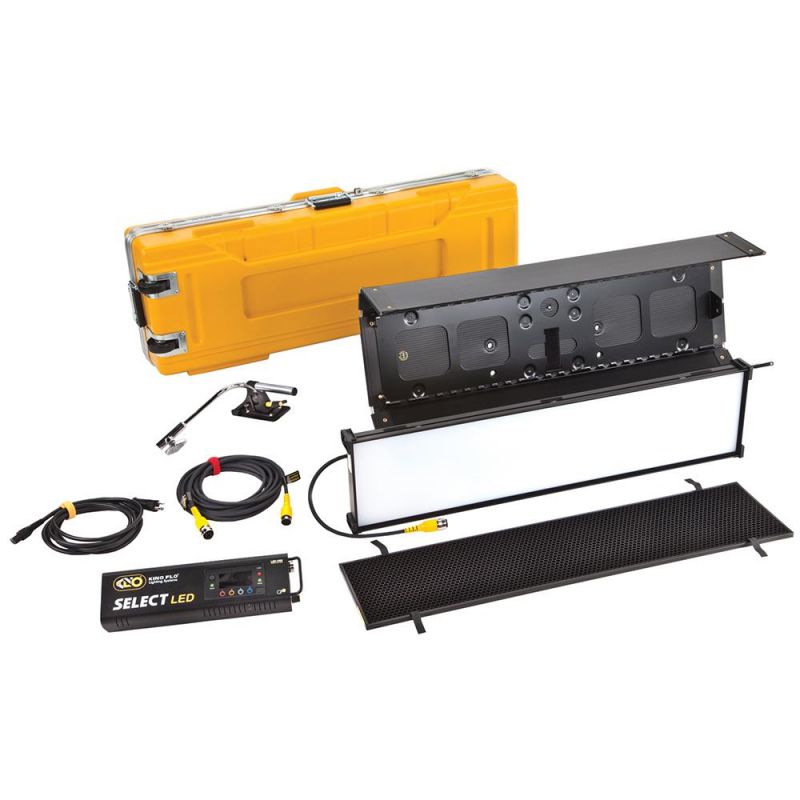

Included in the Box

  • 1 x FreeStyle 31 LED Fixture (CFX-F31)
  • 1 x FreeStyle 150 LED DMX Controller
  • 1 x MTP-BG41 Mount w/ Baby Receiver (16mm)
  • 1 x X12-25 LED Controller - Lighthead 25ft Extension Cable
  • 1 x KAS-DL30 Flight Case



Kino Flo KIT-F31U FreeStyle 31 LED DMX Kit w/ Flight Case

The FreeStyle 31 LED System consists of four components, the FreeStyle 31 LED Fixture, Mounting Plate, FreeStyle 152X LED DMX Controller and Extension Cable.  It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

Kino Flo’s award-winning FreeStyle 31 unleashes your creative side with a quick-release feature to remove the LED panel from the fixture, cutting the weight nearly in half (from 14.5 lbs/6.6kg to 8.5 lbs/4kg) and creating a smaller form factor for better rigging flexibility. The LED panel’s corner bumpers can be used to hang from rope or wire. The panel also takes a Twist-On mount for working on light stands. This Freestyle 31 kit comes complete with the full colour, programmable FreeStyle controller, Head Cable (25ft), Complete Fixture with removable LED panel, and a twist-on KinoGrip Centre Mount. The Honeycomb 90° louver, mounted with Velcro, gives direction to the light, and when removed the panel displays a broad soft beam across the set.

The FreeStyle 31 is known for its >96 white light, full hue and saturation colour, cinema gel choices, and RGB chromatic selection via the AC/DC FreeStyle 150Watt controller. It has built-in Lumen Radio® wireless DMX; no extra cost for wireless receiver accessories. The light can also be operated directly up to 50 feet away from the controller via Kino Flo head cables.
The Freestyle's driver technology achieves bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles. There is no light level change when shifting from 2500K to 9900K, and the colour doesn't change when the light levels rise or fall.

Colour and luminosity remain stable over the rated life of the LED's using Kino Flo's advanced True Match® daylight and tungsten colour management system, which has been an unqualified success since Kino Flo introduced the idea of soft panel True Match Celeb Studio LED’s six years ago. Passive cooling keeps the LED’s in good shape for a longer usable life than fixtures that require electric fans.

The White menu features Dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight and Green/Magenta control channels. The Green/Magenta control can be scaled from 0- to 100, where 25 = ¼ correction, 50 = ½ correction and 100 = full correction.

In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K daylight and a fourth channel is called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature and by pushing the control knob in/out, the gel will be applied or removed. A fifth channel called Hue Angle (Hue) and sixth channel Saturation (Sat) are also included in the gel menu. These two channels behave similar to a traditional colour wheel, where white light is in the centre and Hue Angle determines the colour along a 360-degree range and Saturation determines how much colour is applied. With the Hue Angle and Saturation it is possible to create over 2 million colour combinations!

The RGB colour menu gives individual control of red, green and blue LED’s. The RGB mode is a great way to work with apps with predetermined RGB presets or colour wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colours from a DMX desk.

The FX (Effects) menu introduced on June 1, 2018 provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a “Storm” and “Frankenstein” preset, but it is possible to change Rate to provide additional variation.

More Information
Delivery Time Usually shipped in 2-3 days
Price £4,594.50
Brand Kino Flo
Youtube Link
Youtube Link
Manufacturer Code KIT-F31U
Type Of Lamphead LED DMX Soft Light Panel
Wattage 150 Watts
Number Of Heads 1
Size 103 x 9 x 28cm w/ 16.5cm barndoors
Lamp Type LED
Dimming continuous dimming from 100% to 0% on a linear or square curve
Mounting Center mount and moulded corner mounts
Supply Voltage 100~240VAC 50/60Hz
Strapline The Kino Flo KIT-F31U FreeStyle 31 LED DMX Kit w/ Flight Case is ideal for use on set as a white light, for creating colour effects or for dialling in whichever Gel colour you require.
