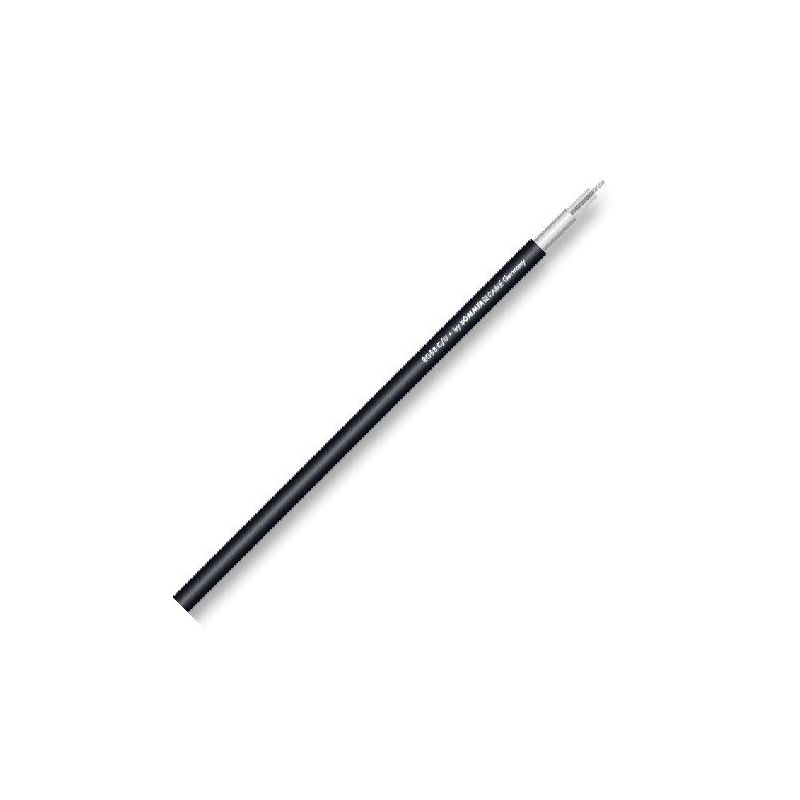

Sommer Cable SC-Classic MKII RG/58U Low Loss Coaxial Cable - Black 600-0401
Great quality robust 50 Ohm cable, used for high frequency applications and RF distribution applications
£1.13
£0.94
In Stock
Only 100 left
SKU
300-101
Sommer Cable 600-0401 SC-Classic MKII RG/58U Low Loss Coaxial Cable
- Extremely long life due to age-resistant jacket
- Consistent and precise electrical values
- Suitable for all standardised plug connectors
Ideal for:
- Data transmission
- High frequency technology
- Antenna Construction
- Fixed Installation
- Hifi Connections
- ICT
Included in the Box
- SC-Classic MKII Cable - Sold by the Meter
Sommer Cable 600-0401 SC-Classic MKII RG/58U Low Loss Coaxial Cable
This RG (Radio Guide) series cable has a cross mesh screen designed according to the American MIL-C-17 standard. This quality construction guarantees excellent and consistent manufacturing quality and super durability. These cables have been created for a wide range of applications in high frequency electronics and data transmission.
Technical Specification
| Jacket, diameter | PVC 4,95 mm |
| AWG | 20 |
| Inner conductors | 0,48 mm2 |
| Inner conductors, diameter | 0,78 mm |
| Copper strand per conductor | copper, tin-plated 19 x 0,18 mm |
| Conductor insulation | PE 2,95 mm |
| Shielding | copper braiding, tin-plated |
| Shielding factor | 92 % |
| Temperature range | min. -25 °C |
| Temperature range | max. 70 °C |
| Fire load per m | 0,15 kWh |
| Weight per 1 m | 38 g |
| Packaging | 100 m ring/500 m roll |
| Matching plug | BNC58 |
| Colour | black |
Electrical Data: |
|
| Capac. cond./shield. per 1 m | 101 pF |
| Surge impedance per 1 km | /-2% 50 Ohm |
| Velocity factor | 0,66 |
| Damping per 100 m (20 °C) | 100 MHz: 15,3 dB |
| Damping per 100 m (20 °C) | 200 MHz: 22,8 dB |
| Damping per 100 m (20 °C) | 500 MHz: 37,0 dB |
| Damping per 100 m (20 °C) | 800 MHz: 48,8 dB |
| Delivery Time | In Stock |
|---|---|
| Price | £0.94 |
| Brand | Sommer Cable |
| Manufacturer Code | 600-0401 |
| Jacket Diameter | 4.95mm |
| Conductors | 0.78mm diameter AWG20 |
| Copper Strand No | 19 x 0.18mm |
| Insulation | PE 2.95mm |
| Shielding Factor | 92%252525 |
| Working Temperature | -25 - 70 degrees C |
| Fire Load | 0.15 kWh per m |
| Capacitance Cond / Shield | 101pF per 1M |
| Impedance | 50 Ohm /- 2%252525 |
| Strapline | Great quality robust 50 Ohm cable, used for high frequency applications and RF distribution applications |
